How to Set Temperature Controller? (1)

1, lower limit deviation alarm setting: press SET key to select “SLP”, the green display shows the value of this parameter, select shift, increment, decrement key to set or modify this parameter. This parameter indicates the difference between the alarm point and the master set point.

2, upper limit deviation alarm setting: press the SET button to select “SHP”, the green display shows the value of the parameter, select the shift, increment, decrement key to set or modify the parameter. This parameter indicates the alarm point above the master setpoint phase difference value.

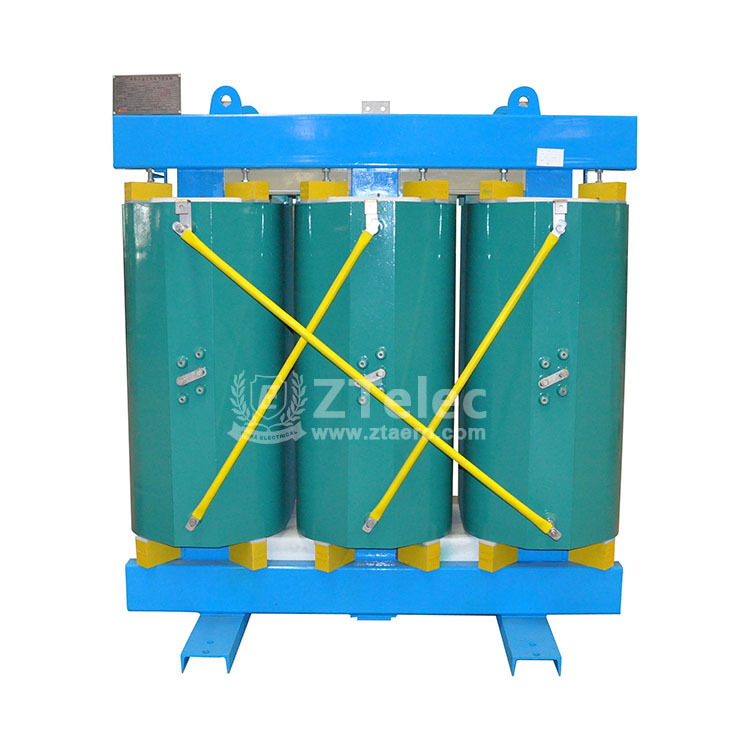

Amorphous Alloy Dry-Type Transformer

3, the scale range settings: press the SET key to select “P”, the green display shows the value of the parameter, select the shift, increment, decrement key to set or modify the parameter. The higher the “P” value, the lower the sensitivity of the thermostat’s master relay output and the smaller the “P” value, the higher the thermostat’s master relay’s output sensitivity will be.

4, integral time setting: press SET key to select “I”, the green display shows the value of this parameter, select shift, increment, decrement key to set or modify this parameter. Set the integration time is shorter, the stronger the integral effect.
