Good Electrical Properties Under Humid Conditions of G-7 Glass-Silicone Laminate

G-7 glass-silicon laminate has good electrical properties under humid conditions, excellent heat and arc resistance, and is self-extinguishing.

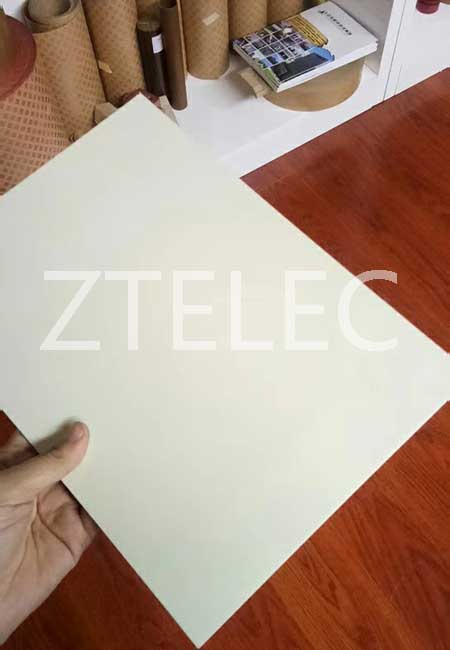

G-7 is used for electrical grade insulation, and for heating & appliance insulation. Silicone laminate grade G7 glass cloth reinforced silicone’s natural color is typically cream to white. Composed of a continuous glass woven cloth base impregnates with silicone resin binder, this grade has excellent heat and arc resistance.

Silicone thermosets are among the best polymers for high temperature. Hence, silicone is broadly used for high temperature electronic applications requiring low electrical losses. Silicone is not as strong as epoxies and industrial laminates (phenolics), upon aging at lower temperatures but is stronger upon aging over 400 deg F.

G7 has extremely good dielectric loss properties under dry conditions and good electrical properties under humid conditions, although the percentage of change is high.

Features of G-7 Glass-Silicone Laminate
Good electrical properties under humid conditions
Excellent heat and arc resistance
Self-extinguishing.
Meets Mil-I-247681/17 GSG
Lead-Time may be 4-6 weeks for this item.
