Product Features:

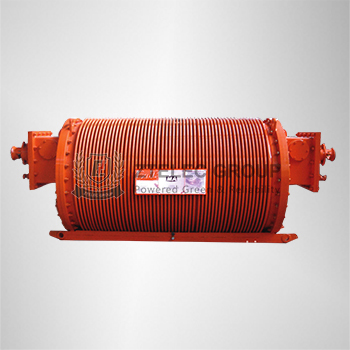

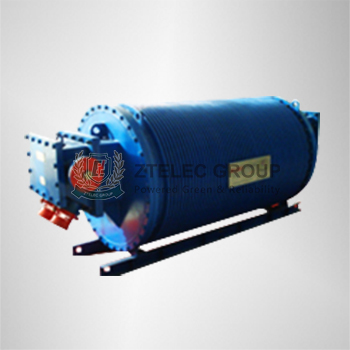

Mining flameproof mobile substation consists of mining flameproof dry type transformers, and mining flameproof mobile substation use high voltage load switches, cable connectors, low-voltage feeder switches as well as low voltage protection boxes. It has safety performance such as anti-creeping, leakage lockout, overload protection, short-circuit-proof, and over-voltage under-voltage prevention.
| 6KV Grade Anti-explosion Transformer KBSGZY-T-100~4000KVA | |||||||||
| Rated Capacity (KVA) |
Voltage Combination | Connection Method | Loss(KW) | No Load Current (%) | Impendence Voltage(%) | Weight (Kg) |
Dimension(mm) (L×W×H) |
||
| HV(KV) | LV(KV) | No Load | Load (145℃) |
||||||
| 100 | 6±5% | 0.693/0.4 1.2/0.693 |
Yy0 (Yd11) |
520 | 920 | 2.5 | 4.0 | 1480 | 3580×910×1150 |
| 200 | 820 | 1550 | 2.0 | 4.0 | 1980 | 3580×910×1150 | |||
| 315 | 1100 | 2150 | 1.8 | 4.0 | 3150 | 3590×1010×1250 | |||
| 400 | 1300 | 2600 | 1.8 | 4.0 | 3385 | 3640×1070×1320 | |||
| 500 | 1500 | 3100 | 1.5 | 4.0 | 3865 | 3730×1070×1320 | |||
| 630 | 1800 | 3680 | 1.5 | 4.0 | 4470 | 3840×1130×1380 | |||
| 800 | 1.2/0.693 3.45 |
Yy0 (Yd11) Yyn0 |
2050 | 4500 | 1.0 | 4.0 | 4975 | 4070×1230×1480 | |
| 1000 | 2350 | 5400 | 1.0 | 4.0 | 5645 | 4070×1310×1560 | |||
| 1250 | 2750 | 6500 | 1.0 | 4.0 | 6310 | 4090×1360×1600 | |||
| 1600 | 3350 | 8000 | 0.8 | 4.0 | 8480 | 5020×1340×1950 | |||
| 2000 | 3.45 | Yyn0 | 3800 | 9500 | 0.6 | 4.5 | 9180 | 5020×1340×1950 | |
| 2500 | 4500 | 10600 | 0.6 | 5.0 | 13080 | 5240×1420×2030 | |||
| 3150 | 5300 | 12500 | 0.6 | 5.5 | 16500 | 5550×1420×2030 | |||
| 4000 | 6100 | 14000 | 0.6 | 6.0 | 19060 | 5630×1420×2030 | |||
| 10KV Grade Anti-explosion Transformer KBSGZY-T-100~4000KVA | |||||||||
| Rated Capacity (KVA) |
Voltage Combination | Connection Method | Loss(KW) | No Load Current (%) | Impendence Voltage(%) | Weight (Kg) |
Dimension(mm) (L×W×H) |
||
| HV(KV) | LV(KV) | No Load | Load (145℃) |
||||||
| 100 | 10±5% | 0.693/0.4 1.2/0.693 |
Yy0 (Yd11) |
560 | 1050 | 2.5 | 4.0 | 2315 | 3400×1010×1250 |
| 200 | 950 | 1800 | 2.0 | 4.0 | 2825 | 2270×1010×1250 | |||
| 315 | 1300 | 2500 | 1.8 | 4.0 | 3240 | 3590×1010×1250 | |||
| 400 | 1500 | 3000 | 1.8 | 4.0 | 3470 | 3640×1070×1320 | |||
| 500 | 1750 | 3500 | 1.5 | 4.0 | 4326 | 3780×1130×1380 | |||
| 630 | 2000 | 4100 | 1.5 | 4.0 | 4850 | 3840×1230×1480 | |||
| 800 | 1.2/0.693 3.45 |
Yy0 (Yd11) Yyn0 |
2300 | 5100 | 1.2 | 4.0 | 4996 | 4070×1230×1480 | |
| 1000 | 2600 | 6100 | 1.2 | 4.5 | 6450 | 4080×1310×1560 | |||
| 1250 | 3100 | 7400 | 1.0 | 4.5 | 6680 | 4280×1350×1600 | |||
| 1600 | 3800 | 8500 | 1.0 | 5.0 | 8430 | 5020×1340×1950 | |||
| 2000 | 3.45 | Yyn0 | 4500 | 9700 | 0.7 | 5.0 | 11030 | 5020×1340×1950 | |
| 2500 | 5200 | 10800 | 0.7 | 5.5 | 14080 | 5240×1420×2030 | |||
| 3150 | 6100 | 12800 | 0.7 | 5.5 | 18800 | 5550×1420×2030 | |||
| 4000 | 7000 | 15000 | 0.7 | 6.0 | 21600 | 5630×1420×2030 | |||
