1.Heat resistance class: H

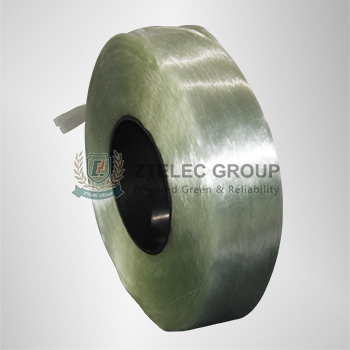

2. Feature :With non-latitude belt winding product quality stable reliable, the resin content is not twined the tensity influence, may in the different winding level accurate control tensity, enable the product to obtain the best intensity and the rigidity structure, the use is simple, may carry on the high speed winding, enhances the productive forces.
3.Standard: JB/T6236.1-92
4.Usage: It is suitable in the transformer、direct current machine、 generator.、pulling motor、electrical and other electric welding machine insulation spots.
| No. | Item | Unit | Spec. | ||||
| 2830 | 2840 | 2841 | 2851 | ||||
| 1 | Thickness | mm | 0.17±0.08 | 0.17±0.03 | 0.17±0.03 | 0.03±0.03 | |
| 2 | Width | mm | 10、15、20、25、30、 35 | ||||
| 3 | Resin content | % | 27±2 | ||||
| 4 | Setting time | h | 17 130℃ |
10 5 130℃ 155℃ |
10 5 130℃ 155℃ |
10 5 3 130℃ 155℃ 180℃ |
|
| 5 | Max. tension force | N | |||||
| 6 | Tensile strength after concretion |
Normality | Mpa | 800 | 800 | 900 | 900 |
| Thernal state | 500 | 500 | 560 | 560 | |||
| 7 | Storage period | One year(25℃) | One year(30℃) | One year(30℃) | One year(30℃) | ||
