Transformer Use Electrical Insulation Material Diamond Dotted Paper DDP

Transformer insulation diamond dotted paper DDP description:

This insulation material which coating and baking modified epoxy resin rhombic on the electrical insulation paper is widely used in oil-immersed transformers, reactors,and turn insulation between layers. During using, the coating layer in the process of coil drying and at a certain temperature, it will began melt and resulting in adhesion. With the temperature rises again the solidification , and the adjacent layers of the winding reliably bonded into a fixed unit. The bonding strength of the epoxy resin is sufficient to prevent the displacement of the various layers of the winding in the short circuit, so as to ensure the long-term mechanical and electrical properties of the insulation structure.

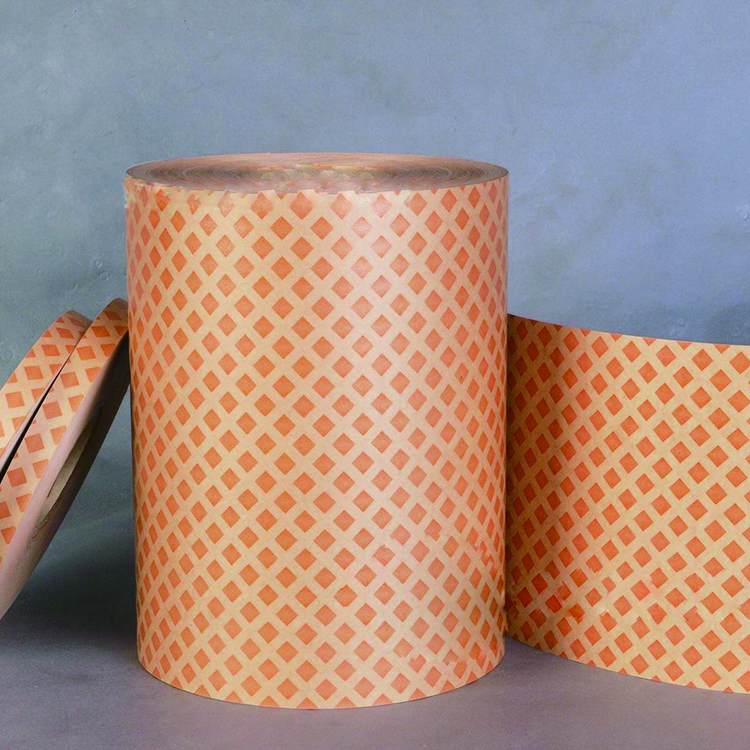

Transformer insulation diamond dotted paper DDP detail shows:

Transformer use electrical insulation material Diamond dotted paper DDP DPPTransformer use electrical insulation material Diamond dotted paper DDP DPPTransformer use electrical insulation material Diamond dotted paper DDP DPP

Transformer insulation diamond dotted paper DDP specifications:

Thickness: 80um,130um,180um,200um ,250um

Width: 625mm/980mm (could cut in rolls)

Rool diameter: 250~300 mm

One rool weight about: 45~60 Kg
